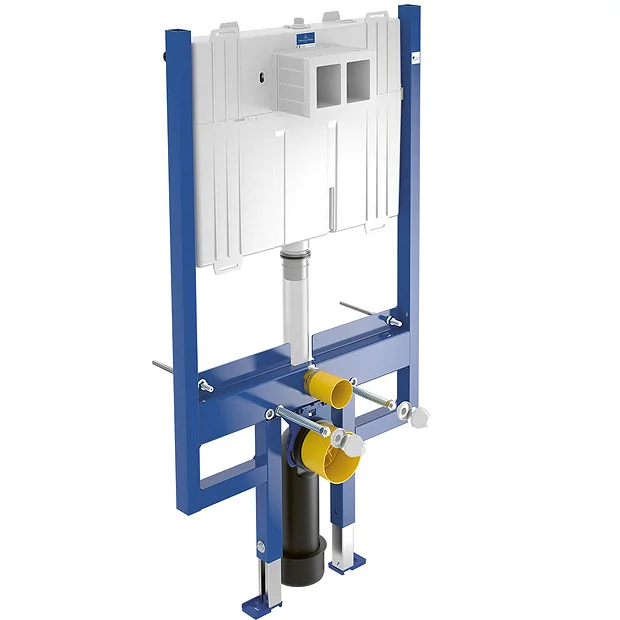

Villeroy & Boch Villeroy And Boch ViConnect 1120mm Compact Toilet Support Frame With Dual Flush Cistern

Villeroy and Boch ViConnect 1120mm Compact Toilet Support Frame with Dual Flush Cistern – 92247600

The Villeroy & Boch ViConnect 1120mm Compact Toilet Support Frame with Dual Flush Cistern is suitable for use with all wall hung toilet pans. The self supporting powder-coated steel frame can be fixed to most types of wall and has adjustable feet for uneven floors. The concealed cistern is insulated to prevent condensation, reducing the need for maintenance. As standard, the dual flush cistern provides a six or three litre option, but this can be adjusted to use even less water if desired.

Product Details

• Brand: Villeroy and Boch
• Height: 1120mm
• Width: 635mm
• Depth: 90mm
• For wall hung pans
• For covering with plasterboard, installation on a solid brick wall, in dry-wall constructions etc
• Easy connection to flush plate via flexible cables with bayonet joint
• Adjustment range of feet from unfinished floor level to upper edge of finished floor level: 0-200mm
• Adjustment range front to wall: min 90 mm, with cistern 80 mm
• Self-supporting powder-coated steel frame
• Fully pre-assembled
• Front operated
• Button function transmitted to drain fitting via flexible cables
• Connection to flush plate via bayonet joint
• Concealed cistern insulated against condensation water
• With dual flush 3/6 l, adjustable to 3/4,5 l, maximal flush quantity 7.5 l, filling valve
• Filling valve Noise Class I
• Angle valve connection set G1/2
• Drain bend clamp
• WC connecting bend 90° DN 90 (Ø 90) / with reducing sleeve DN 90 (Ø 90) / DN 110 (Ø 110) with protection cap
• Complete WC connection set DN 90 (Ø 90) / 180 mm
• Protection box for access opening can be cut to size
• Certification marks for concealed cistern: Noise Class I
• EN 14055EN 14055

10 Year Guarantee

All measurements are approximate

Images are for illustrative purposes only

Please note: Flush plate sold separately.
